Choose Steel Type
Click to jump to each steel type & grade list
Sizes & Delivery Conditions
Length: 1000–6000 mm | Certificate: EN 10204 3.1
| Delivery Condition | Diameter Range |
|---|---|
| Coil | Ø1.5–30 mm |
| Cold Drawn | Ø2–50 mm |
| Ground | Ø1.5–80 mm |
| Pre-hardened | Ø1.5–80 mm |
| Peeled | Ø5–120 mm |
| Length | 1000–6000 mm |

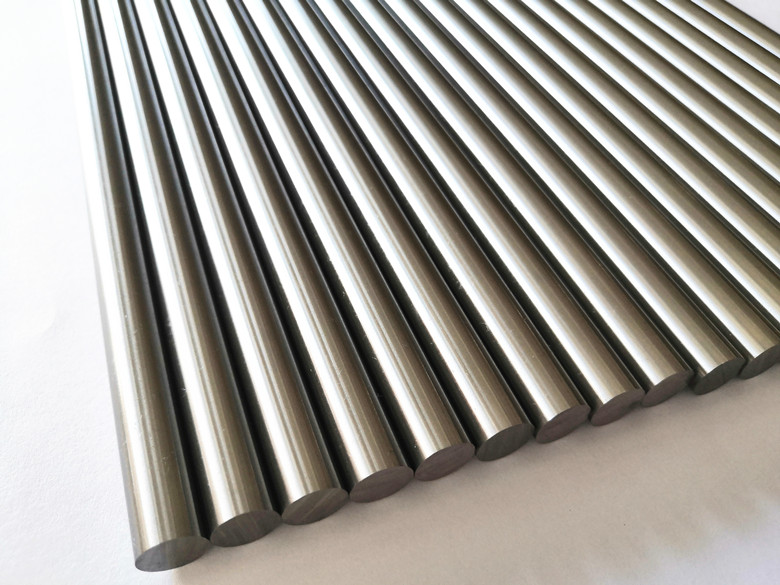

Hot Work Tool Steel
Typical Applications
- Die casting molds (Al/Zn/Mg)
- Hot forging dies
- Hot extrusion tools
- Hot shear blades
- High-temperature tooling
Key Properties
- Heat Resistance
- Thermal Fatigue Resistance
- High Toughness
- Crack Resistance
- Good Machinability
- Suitable for EDM
Grade Equivalents Table
| DIN | AISI / ASTM | JIS | GB |
|---|---|---|---|
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 |
| 1.2344+S | H13+S | FDAC | 4Cr5MoSiV1(S) |
| 1.2367 | A2 | SKD12 | — |
Cold Work Tool Steel
Typical Applications
- Blanking & punching dies
- Stamping / forming dies
- Cold extrusion & heading dies
- Shear blades / slitter knives
- Gauges, wear plates & tooling components
- (Optional) Thread rolling / forming tools
Key Properties
- High wear resistance
- High compressive strength
- Good hardenability
- Dimensional stability after heat treatment
- Balanced toughness for anti-chipping
- Good machinability (depending on grade)
Grade Equivalents Table
| DIN | AISI / ASTM | JIS | GB |
|---|---|---|---|
| 1.2379 | D2 | SKD11 | Cr12Mo1V1 Cr12MoV |
| 1.2842 | 2 | — | 9Mn2V |
| 1.2363 | A2 | SKD12 | — |
| 1.251 | 1 | SKS3 | 9CrWMn |
| 1.2516 | — | — | wV |
| 1.221 | — | — | T12CrV |
| — | — | DC53 | — |
| — | — | DC58 | — |

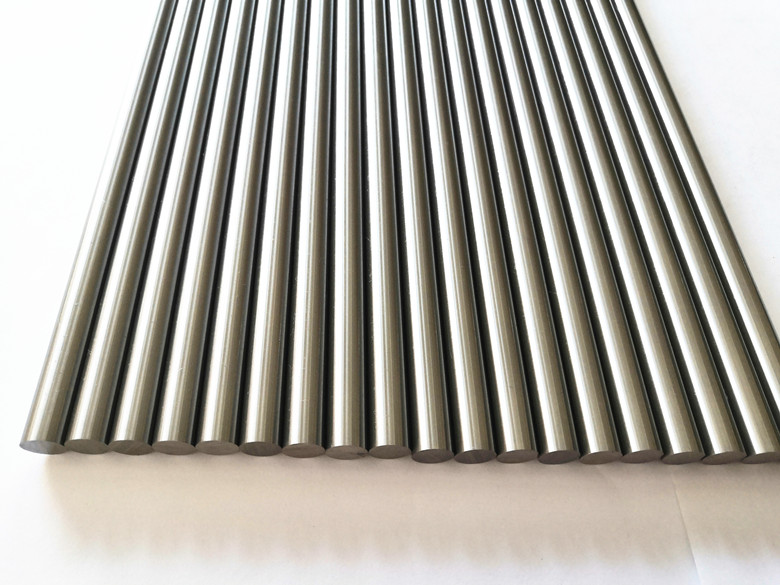

Plastic Mold Steel
Typical Applications
- Injection molding dies (general-purpose molds)
- Blow molds & preform molds
- Automotive plastic parts molds
- Household appliance molds
- Packaging molds (caps, containers, thin-wall parts)
- Transparent / high-gloss molds (recommended with 1.2316 or Ni grades)
Key Properties
- Excellent machinability for faster mold making
- Good polishability for high-gloss surfaces
- Good dimensional stability
- Uniform hardness & good toughness
- Suitable for texturing / EDM
- Corrosion resistance options available (1.2316 / stainless mold steel)
Grade Equivalents Table
| DIN | AISI / ASTM | JIS | GB |
|---|---|---|---|
| 1.2311 | P20 | — | — |
| 1.2312 | P20+S | — | — |
| 1.2738 | P20+Ni | — | — |
| 1.2316 | — | — | — |
